Product Description

PanaVise is a major manufacture of Vises and Work Holding Tools. PanaVise's Tilt, Turn & Rotate technology has been applied to the product line, allowing for maximum efficiency and many different uses. Introducing the Panavise 366 WIDE OPENING HEAD, Hold larger objects with this general purpose Vise Head! Jaw pads gently, yet firmly, hold a wide variety of objects including circuit boards, coils and tuners. Jaws open a generous 6-Inch. Jaws pads are 1.875-Inch (47.6mm) high x 1.5 (38.1mm) wide. Opens to 6 (152.4mm) with jaw pads and 6.25 (158.8mm) without jaw pads. Ribbed, neoprene jaw pads provide a sure grip and can hold and insulate PC boards and other larger objects; reverse the pads and the wide V holds delicate cylindrical objects. Remove jaw pads from steel jaws when working with high heat. Black oxide coating reduces glare and promotes eye comfort. Head Length: 11 (279.4mm). Compatible with all 300 series Bases. Height (shaft to top of jaw pads): 5.125 (130.2mm), Weight: 1.6 lbs (0.7kg).

From the Manufacturer

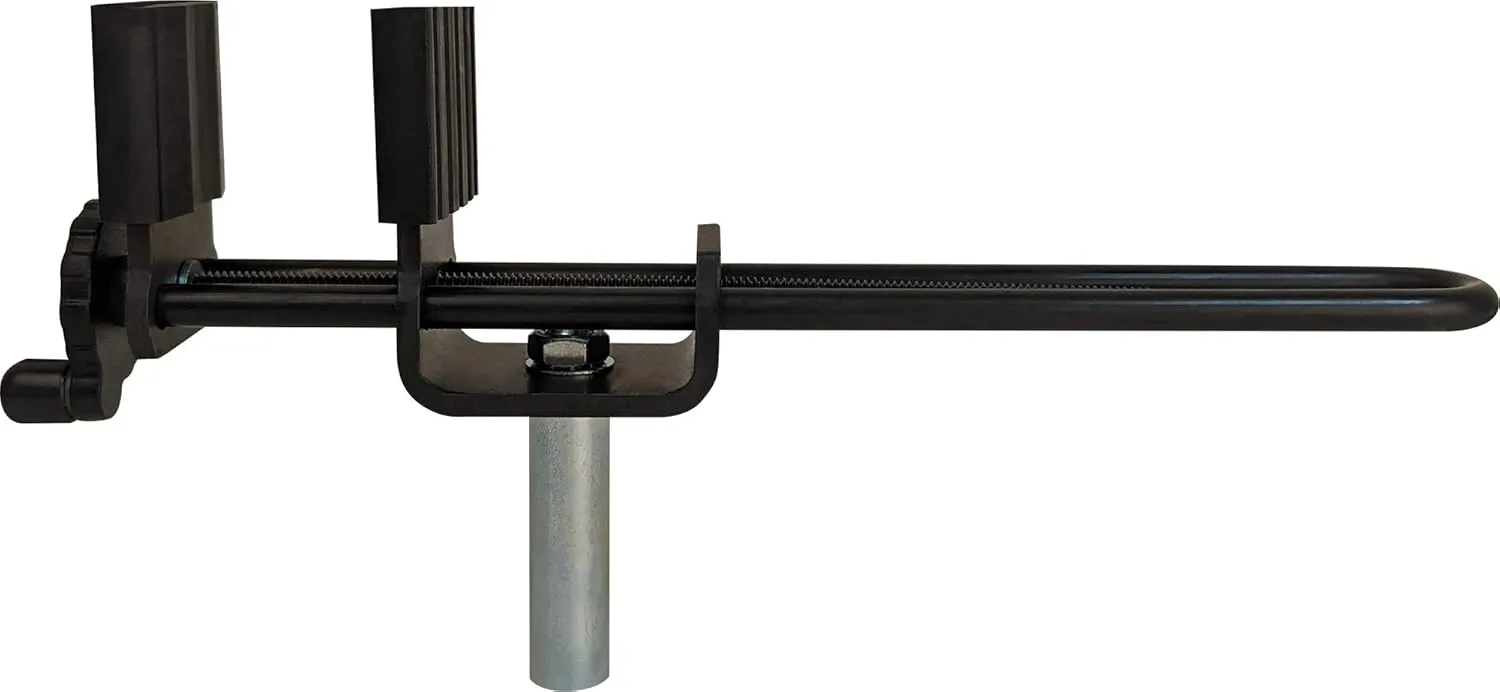

The PanaVise 366 wide opening vise head features jaws that open up to 6", allowing existing compatible vise bases to hold small or larger objects without the need to change heads. Jaws are opened and closed via a "single-action" side crank mechanism that moves the jaw opposite it away and/or towards the other. The unit ships with reversible and removable 1-7/8" neoprene jaw pads that provide a firm yet scratch free hold for secured items. One side of the pads has multiple grooves designed for flat surfaces, while the other side has a wide "V" groove to hold round or elliptical objects. When the pads are removed, jaws open to 6-1/4". To promote eye comfort, the PanaVise 366 is treated with a black oxide coating to reduce glare in bright lighting conditions. The head stem is 5/8" in diameter, making it compatible with the full 300 series of PanaVise bases, as well as other vise bases that accept 5/8" head stems.

Specifications

• Height: 5-1/8" (130.2 mm)
• Weight: 1.6 lb. (0.7 kg)
• Head length: 11" (279.4 mm)
• Post/stem diameter: 5/8" (15.9 mm)
• Jaw range:
  • 0" to 6" (152.4 mm) - pads on
  • 0" to 6-1/4" (158.8 mm) - pads off
• Jaw pads: neoprene; removable; 1-7/8" (47.6 mm) high x 1-1/2" (38.1 mm) wide

Limited Lifetime Warranty

All PanaVise products are warranted against defective materials and/or workmanship to all original consumer owners from the date of original consumer purchase for the lifetime of ownership by the original consumer owner. In the event of defective materials and/or workmanship, PanaVise Products, Inc. will, without charge, repair or replace, at its option, the defective product within 60-days from the receipt of the defective product. The Warranty does not apply to damage not resulting from defective materials and/or workmanship while in the possession of the original consumer or to unreasonable use by the original consumer, which includes but is not limited to improper installation, or failure to provide reasonable and necessary maintenance.

About PanaVise

Founded in 1957 by tool and die maker Otto Colbert and currently headquartered in Reno, Nevada, PanaVise is a leader in work-holding products. Over the years, a natural outgrowth of this expertise has been continued development of other items which hold things securely and offer a wide range of motion. Important areas in which this has been applied include, electronics, CCTV camera mounts, and audio/video mounts, earning PanaVise the nickname the "the hold it anywhere you want it company."

• Is Discontinued By Manufacturer ‏ : ‎ No
• Product Dimensions ‏ : ‎ 3.94 x 3.15 x 2.36 inches; 1.01 Pounds
• Date First Available ‏ : ‎ April 1, 2006
• Manufacturer ‏ : ‎ Panavise
• Country of Origin ‏ : ‎ USA
